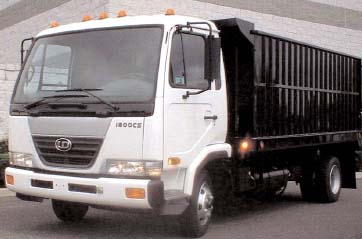

UD1800CS
| |
| 2007 MODEL YEAR | |
| SPECIFICATIONS: UD1800cs |
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WHEELBASES | D | F | G | H | L |
| GVWR (lb.) | 17,995 | 17,995 | 17,995 | 17,995 | 17,995 |
| Chassis Weight(lb.) | 6,415 | 6,480 | 6,535 | 6,600 | 6,725 |
| Front (lb.) | 4,310 | 4,330 | 4,365 | 4,385 | 4,430 |
| Rear (lb.) | 2,105 | 2,150 | 2,170 | 2,215 | 2,295 |
| Gross Payload (lb.)* | 11,580 | 11,515 | 11,460 | 11,395 | 11,270 |
| Wheelbase (in.)** WB | 142.5 | 160.6 | 172.4 | 184.3 | 196.9 |
| Cab-to-Rear Axle (in.) CA | 115.6 | 133.7 | 145.5 | 157.3 | 169.9 |
| Rear Overhang (in.) RO | 59.8 | 69.7 | 74.0 | 79.9 | 88.6 |
| Overall Length(in.) OL | 248.6 | 276.6 | 292.7 | 310.4 | 331.7 |
| Typical Body Lengths (ft.)*** | 14 | 16 | 18 | 20 | 22 |
| Turning Radius (ft.) | 19.0 | 21.3 | 22.6 | 24.0 | 25.6 |
*Gross payload capacity equals GVWR minus chassis weight. Installation of specialized equipment or bodies may require frame reinforcement. **Wheelbase selection should be based on specific weight distribution. ***Typical body lengths assume water level load (no specific consideration for driver, passengers, or fuel) to maximize GVWR. Addition of ancillary equipment such as lift gates and refrigeration units not considered in calculations.
| ENGINE |
MD-175* 16 valve
Turbo/Intercooled Diesel In-line 4 cylinder, Direct-injection |
| Horsepower | 175 hp @ 2,700 rpm |
| Torque | 347 lb. ft. @ 1,600 rpm |
| Displacement | 289 in.3 (4.728 L) |
| Cylinder Liner | Dry, replaceable |
| Fuel System |
Electronically controlled, common
rail system |
| Air Cleaner | 11.0 in., paper filter type (DONALDSON) |
| Cold Starting Aid | Automatic electric glow plug |
| Fan | Viscous type drive |
| *MD-175 (JO5D-TA) is a vendor engine manufactured for Nissan Diesel Motor Company | |
|
FRONT AXLE
GAWR |
6,830 lb. |
| Rated Axle Capacity | 6,830 lb. |
| Axle Type | "I" Beam |
| Suspension | Semi-elliptic leaf springs |
| Shock Absorbers | Telescopic type |
|
REAR AXLE
GAWR |
13,000 lb. |
| Rated Axle Capacity | 14,330 lb. |
| Axle Type | Full-floating banjo housing |
| Suspension | Semi-elliptic leaf springs with auxiliary springs |
| WHEELS & TIRES | |
| Tires |
Front: Single, highway tread
Rear: Dual, traction type 215/75R17.5 - 14PR (tubeless radial) |
| Wheels |
Steel disc type, 6 hole,
6.00 x 17.5 in., offset 5.3 in. |
| BRAKE SYSTEM | |
| Service Brakes |
Anti-lock Braking System*. Dual line, hydraulic brake system |
| Front |
Internal expanding, two leading shoe, |
| Rear |
Internal expanding, dual two leading shoe, |
| Parking Brake |
Hand brake lever activating drum at rear of transmission |
| Exhaust Brake |
Electrically controlled, pneumatically activaated butterfly valve in exhaust pipe |
| CHASSIS FRAME | Ladder type, channel section side rails |
| Dimensions (in.)* | 9.21 x 2.76 x 0.28 |
| Assembled Width (in.) | 33.9 |
| Section Modulus (in.3) ** | 18.3 |
| Yield Strength (psi) | 51,200 |
| RBM (in.-lb.) | 937,000 |
| *Height x Flange Width x Thickness **Measured at back-of-cab, specifications based on complete chassis (both rails) | |
| FUEL TANK |
Round fuel tank, mounted to right side
Capacity - 33 gallons |
| CAB | Forward control, steel construction, tilting cab. Cab suspension w/shock absorbers |
| Air Conditioner | Standard |
| Cab Glass | Windshield, tinted laminated 2,314 in.2 |
| Cruise Control | Standard |
| Door Locks | Driver & passenger, electric control | Door Vent Window | Driver, ventilating type |
| Driver's Seat |
Height & seat Back angle adjustable Cloth cover, high back type |
| Keyless Entry | Standard |
| Passenger Seat | Seat back angle adjustable, cloth cover, high back |
| Seat Belts | Driver & passenger, 3-point ELR type |
| Rearview Mirrors |
West coast type, 6.5 x 11 in. with Convex type, 5.8 x 4.3 in. |
| Steering Column | Tilt & telescopic type |
| sun Visors | Driver & passenger |
| Windows | Driver & passenger, electric control |
| Windshield Wipers | Dual, electric-driven, intermittent & 2 speed |
| ELECTRICAL EQUIPMENT |
Back-up lights (2) Cigar lighter Clearance, identification & position lights Day-time running lights Halogen headlights, 2 lamps Interior and map light License light Side turn signal lights Stop/tail lights Turn signal/hazard lights |
| INSTRUMENTS | |
| Meters & Gauges |
Air pressure gauges Coolant temperature gauge Fuel gauge Speedometer, odometer & trip meter Tachometer |
| Warning & Indicator | |
| Lights & Buzzer |
ABS warning light Alternator low charge warning light Automatic transmission:
Engine control system warning light Engine glow plug indicator light Exhaust brake indicator light External air restriction indicator Hazard warning flasher High beam indicator light Low air pressure warning light & buzzer Low brake fluid level warning light & buzzer Low coolant level warning light & buzzer Low oil pressure warning light Parking brake indicator light Sedimentor warning light Service brake warning light and buzzer Turn signal indicator lights Warning lights with burn-out bulb Check function Backup alarm |
| OTHER OPTIONS |
AM/FM stereo radio with CD Block heater Center console/third seat Driver's suspension seat |
