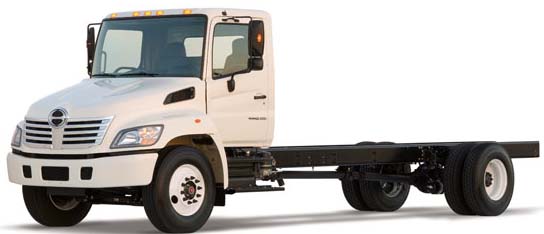

2007 HINO 338
SPECIFICATIONS

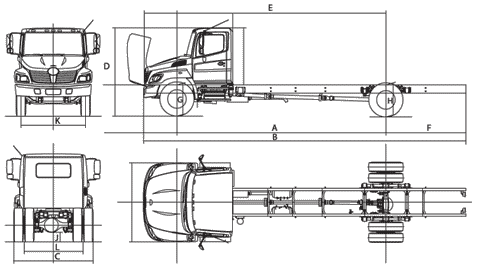

| DIMENSIONS (On standard specification) | |||||||
| Production code | ND8JLSA | ND8JMSA | ND8JPSA | ND8JRSA | ND8JTSA | ND8JVSA | |
| Wheelbase code | L | M | P | R | T | V | |
| Wheelbase | A in. | 187.0 | 205.0 | 217.0 | 235.0 | 253.0 | 271.0 |
| Overall length | B in. | 302.6 | 320.6 | 354.6 | 372.6 | 390.6 | 390.6 |
| Overall width | C in. | 96.5 | 96.5 | 96.5 | 96.5 | 96.5 | 96.5 |
| Overall height | D in. | 106.9 | 106.9 | 106.9 | 106.9 | 106.9 | 106.9 |
| Cab to axle | E in. | 119.6 | 137.6 | 149.6 | 167.6 | 185.6 | 203.6 |
| Rear overhang | F in. | 75.0 | 75.0 | 97.0 | 97.0 | 97.0 | 79.0 |
| Road clearance | |||||||
| (at diff. axle) | J in. | 11.2 | 11.2 | 11.2 | 11.2 | 11.2 | 11.2 |
| Tread | |||||||
| Front | K in. | 79.3 | 79.3 | 79.3 | 79.3 | 79.3 | 79.3 |
| Rear | L in. | 72.2 | 72.2 | 72.2 | 72.2 | 72.2 | 72.2 |
| POWER LINE & PERFORMANCE 33,000 lbs. GVW | |||||
| 11.00R22.5-14 tires. (Option ratio is combined with 295/75R22.5 tire.) | |||||
| Power line | Manual | Automatic | |||
| STD. | OPT. | OPT. | OPT. | ||
| Max. speed mph | 76 | 78 | 74 | 76 | |
| Transmission Model | Eaton FS6406A | Allison 3000 RDS | |||
| Type | Six-speed direct drive synchromesh 1st-6th |
Five-speed automatic | |||
| ENGINE | |
| Model | HINO JO8E-TB - 2004 EPA Certified |
| Type | Diesel 4-cycle, 6-cylinder in-line, water-cooled |
| Combustion system | Direct injection type |
| Max. output (SAE Gross) | 260HP at 2500 rpm |
| Max. torque (SAE Gross) | 585 lb.-ft. at 1,500 rpm |
| Bore and stroke | 4.41 x 5.12 in. |
| Piston displacement | 8L |
| Fuel system | Common rail |
| Governor | Electronically controlled |
| Intake system | Turbocharged and intercooled |
| Air cleaner | Paper filter type ("DONALDSON") |
| Air Compressor Type | Single cylinder, water-cooled |
| Fan clutch | Bimetal thermostat sensor, regulates fan speed |
| WEIGHT CAPACITIES | |
| Front axle lbs. | 12,000 |
| Rear axle lbs. | 21,000 |
| Front spring lbs. | 12,000 |
| Rear spring lbs. | 21,000 |
| LIQUID CAPACITIES | |
| Fuel tank gal./US | 52 |
| Cooling system gal./US | 5.68: Allison 3000RDS 5:55 Eaton FS6406A |
| ELECTRICAL EQUIPMENT | |
| Batteries | Two, parallel connection, each 12V |
| Capacity | 1200 CCA |
| Alternator | 12V, 100A, brush (Delco) |
| Starter | 12V, 4.8 kW |
| Audio | AM/FM radio with CD player |
| Headlamps | Integrated with turn signal and hazard lamp |
| Daytime running lamps | |
| Back-up lamps | |
| Dome lamp | |
| Front side marker lamps | |
| Clearance lamps (front) | |
-
Options
- Cold weather package
(Block heater, heated mirror, glow plugs
and heated pre-filter/sedimenter) - Cloth seats
- Single passenger's seat - Adjustable reclining
- Clutch control with auto adjuster (1401 SOLO)
- Twin plate clutch (1402)
- Twin plate clutch control auto adjuster (1402)
- Alternator - 12V, 105A, brushless (Denso)
- Dual fuel tank 52 Gal x 2
- Fuel tank 95 Gal
- Fuel filter; Davco
- Rear spring; with stabilizer
- Rear spring; with dual acting shock absorbers
- 21,000 lb Hendrickson rear air suspension (wheelbase P,R,T & V)
- Tire size: 295/75R22.5
- 4 inch extended, Front bumper (Black)
- 3 piece front bumper
- 4 inch extended, 3 piece, front bumper (black)
- Power windows
- Battery GR31
- Battery GR27 x 3
- Battery GR31 x 2
- Engine block heater
- Heated mirrors
NOTE: All specifications of the products are within normal manufacturing allowances and tolerances HINO MOTORS SALES U.S.A. INC. reserves the right to alter specifications at any time without previous notice. Some optional items of equipment may require extra time due to the need for their adaptation on the product line.
