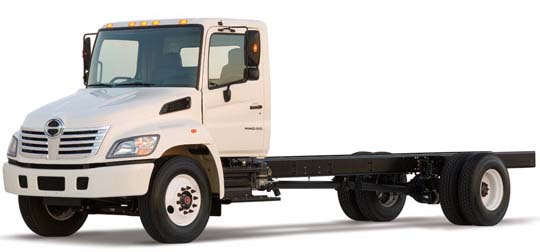

2007 HINO 238
SPECIFICATIONS

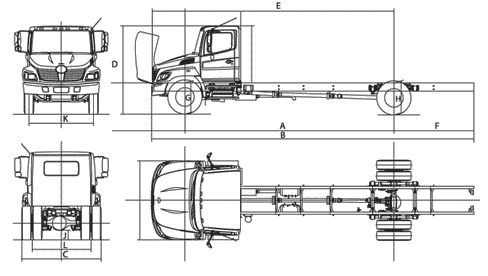

| DIMENSIONS (On standard specification) | ||||||
| Production code | ND8JLSA | ND8JMSA | ND8JPSA | ND8JRSA | ND8JTSA | |
| Wheelbase code | L | M | P | R | T | |
| Wheelbase | A in. | 187.0 | 205.0 | 217.0 | 235.0 | 253.0 |
| Overall length | B in. | 302.6 | 320.6 | 354.6 | 372.6 | 390.6 |
| Overall width | C in. | 95.7 | 95.7 | 95.7 | 95.7 | 95.7 |
| Overall height | D in. | 105.9 | 105.9 | 105.9 | 105.9 | 105.9 |
| Cab to axle | E in. | 119.6 | 137.6 | 149.6 | 167.6 | 185.6 |
| Rear overhang | F in. | 75.0 | 75.0 | 97.0 | 97.0 | 97.0 |
| Road clearance | ||||||
| (at diff. axle) | J in. | 10.6 | 10.6 | 10.6 | 10.6 | 10.6 |
| Tread | ||||||
| Front | K in. | 78.0 | 78.0 | 78.0 | 78.0 | 78.0 |
| Rear | L in. | 72.0 | 72.0 | 72.0 | 72.0 | 72.0 |
| POWER LINE & PERFORMANCE | ||||
| 23,000 lbs. GVW &10R22.5 tire. | ||||
| Power line | Manual | Automatic | ||
| STD. | OPT. | OPT. | OPT. | |
| Max. speed mph | 78 | 78 | 78 | 77 |
| Transmission Model | Eaton FSS406A | Allison 2200 RDS | ||
| Type | Six-speed direct drive synchromesh 1st-6th |
Five-speed automatic |
| ENGINE | |
| Model | HINO JO8E-TA - 2004 EPA Certified |
| Type | Diesel 4-cycle, 6-cylinder in-line, water-cooled |
| Combustion system | Direct injection type |
| Max. output (SAE Gross) | 220HP at 2500 rpm |
| Max. torque (SAE Gross) | 520 lb.-ft. at 1,500 rpm |
| Bore and stroke | 4.41 x 4.72 in. |
| Piston displacement | 8L |
| Fuel injection | Radial plunger pump (HP-4) |
| Governor | Electronically controlled |
| Intake system | Turbocharged and intercooled |
| Air cleaner | Paper filter type ("DONALDSON") |
| Fan clutch | Bimetal thermostat sensor, regulates fan speed |
| WEIGHT CAPACITIES | |
| Front axle lbs. | 8,000 |
| Rear axle lbs. | 17,500 |
| Front spring lbs. | 8,000 |
| Rear spring lbs. | 19,000 |
| LIQUID CAPACITIES | |
| Fuel tank gal./US | 52 |
| Cooling system gal./US | 5.68: Eaton FS5406A 5.55: Allison 220RDS |
| ELECTRICAL EQUIPMENT | |
| Batteries | Two, parallel connection, each 12V |
| Capacity | 1200 CCA |
| Alternator | 12V, 100A, brush (Delco) |
| Starter | 12V, 4.8 kW |
| Audio | AM/FM radio with CD player |
| Headlamps | Integrated with turn signal and hazard lamp |
| Daytime running lamps | |
| Stop/Tail lamps | |
| Back-up lamps | |
| Side-flasher lamp | |
| Dome lamp | |
| Front side marker lamps | |
| Clearance lamps (front) |
-
Options
- Cold weather package
(Block heater, heated mirror, glow plugs
and heated pre-filter/sedimenter) - Cloth seats
- Single passenger's seat - Adjustable reclining
- Clutch control with auto adjuster (1401 SOLO)
- Twin plate clutch (1402)
- Twin plate clutch control auto adjuster (1402)
- Alternator - 12V, 105A, brushless (Denso)
- Dual fuel tank 52 Gal x 2
- Fuel tank 95 Gal
- Rear spring; with stabilizer
- Rear spring; with dual acting shock absorbers
- Tire size: 255/80R22.5
- 3 piece front bumper
- 4 inch extended, Front bumper (Black)
- Power windows
- Battery GR231
- Battery GR27 x 3
- Battery GR31 x 2
- Engine block heater
- Heated mirrors
NOTE: All specifications of the products are within normal manufacturing allowances and tolerances HINO MOTORS SALES U.S.A. INC. reserves the right to alter specifications at any time without previous notice. Some optional items of equipment may require extra time due to the need for their adaptation on the product line.
